AFW - Surprise
Summarize the project's program, features and achievements?

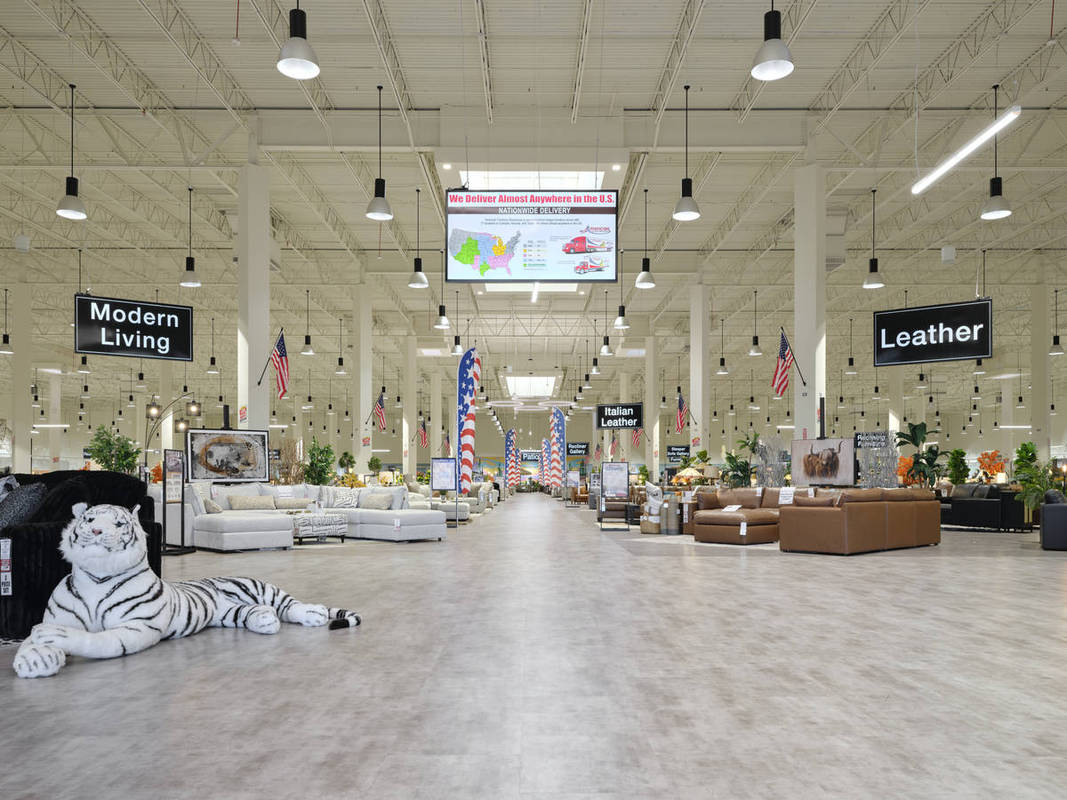

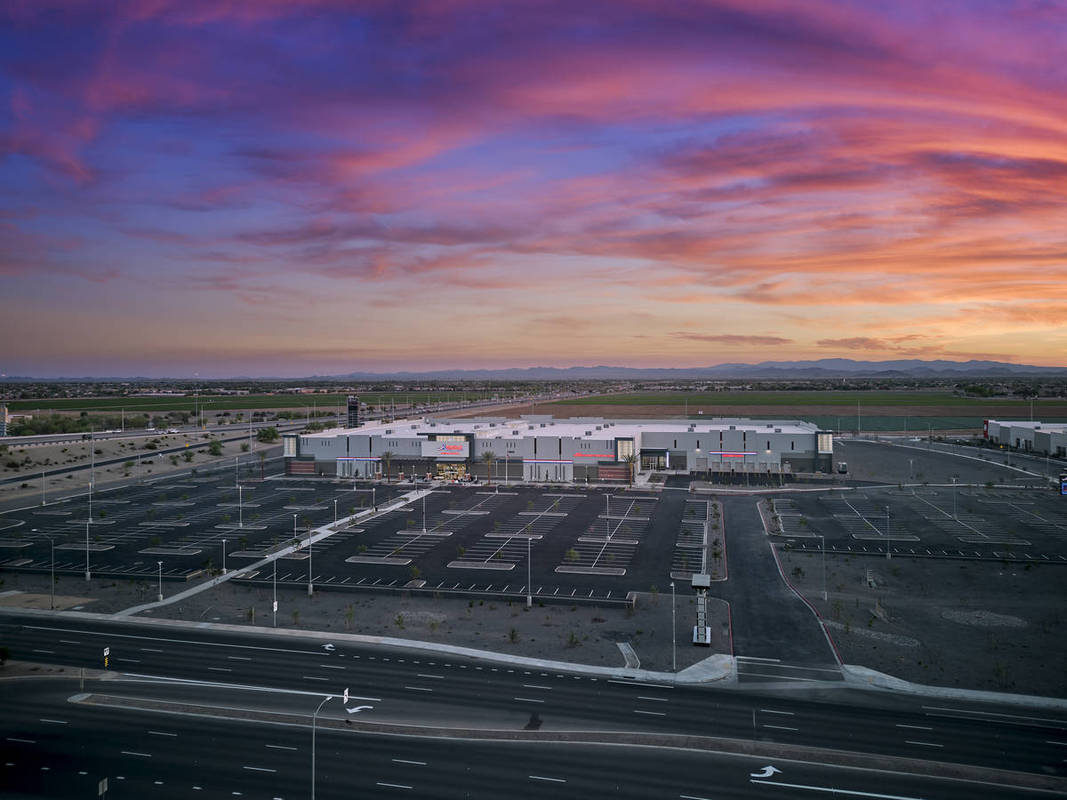

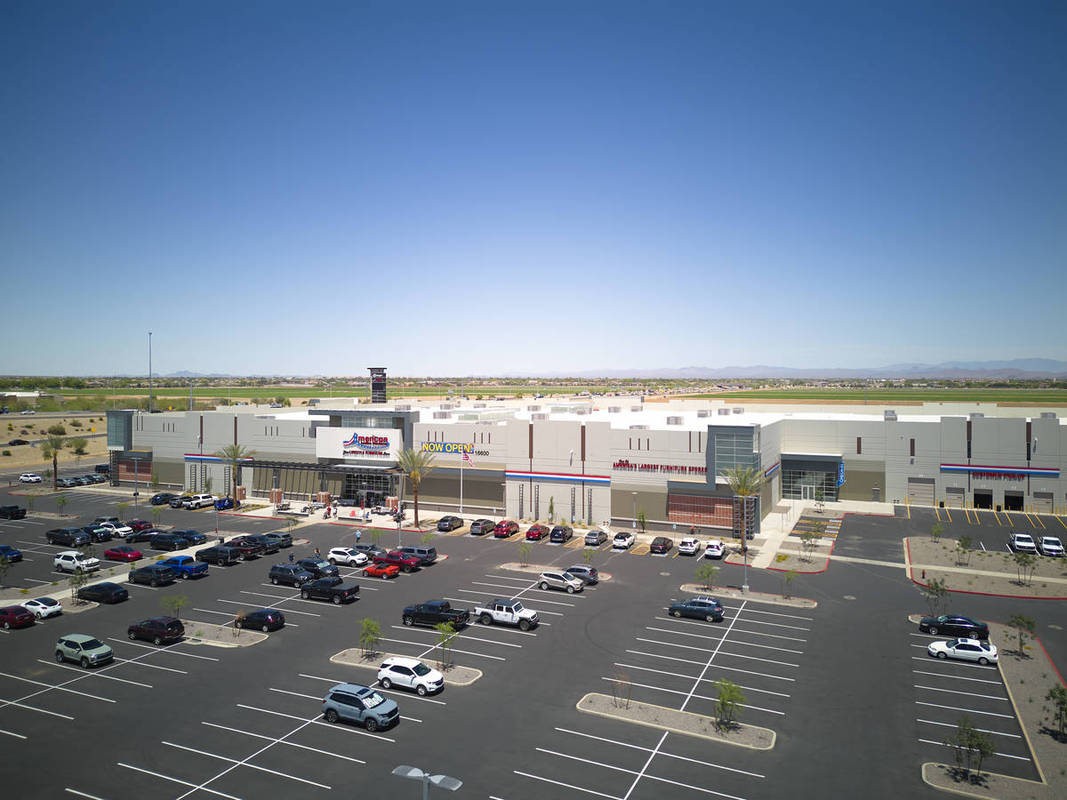

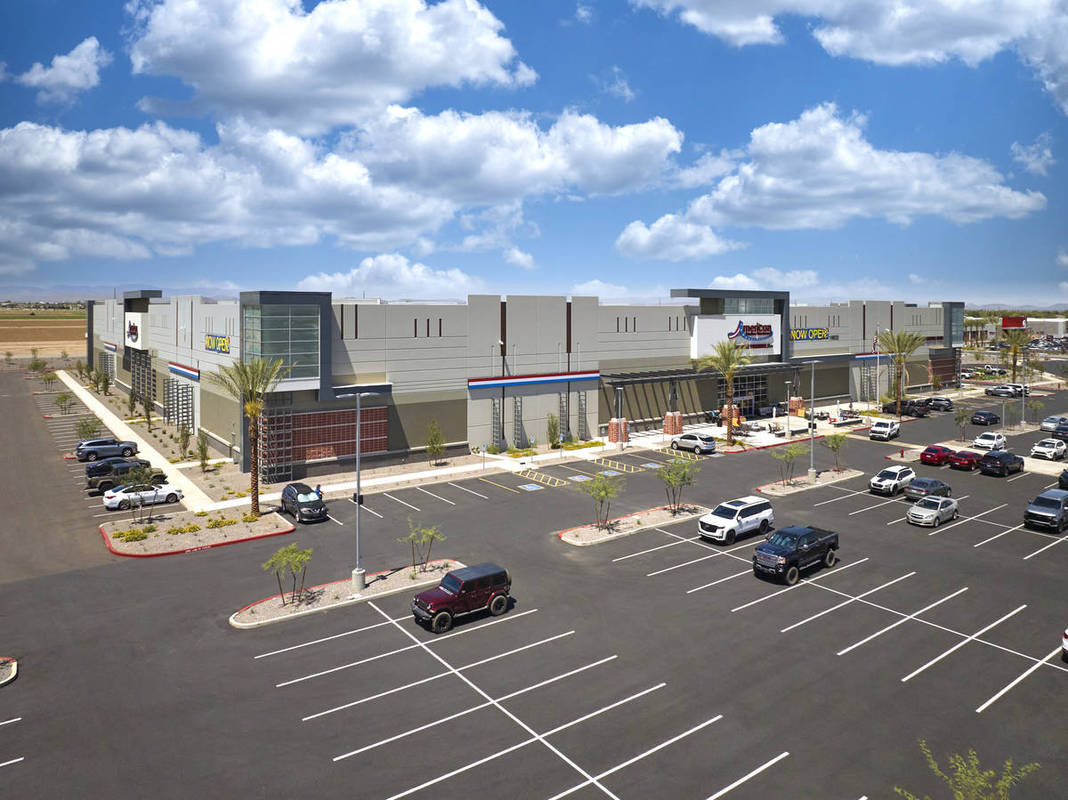

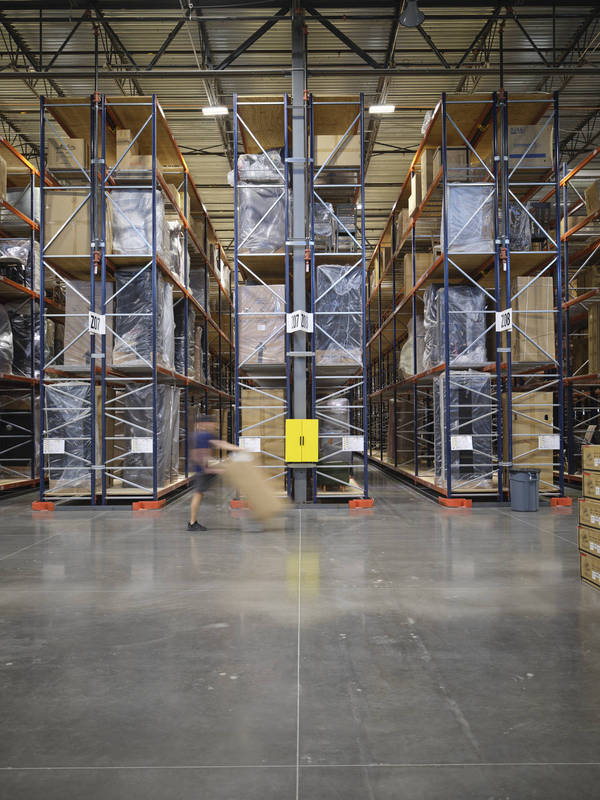

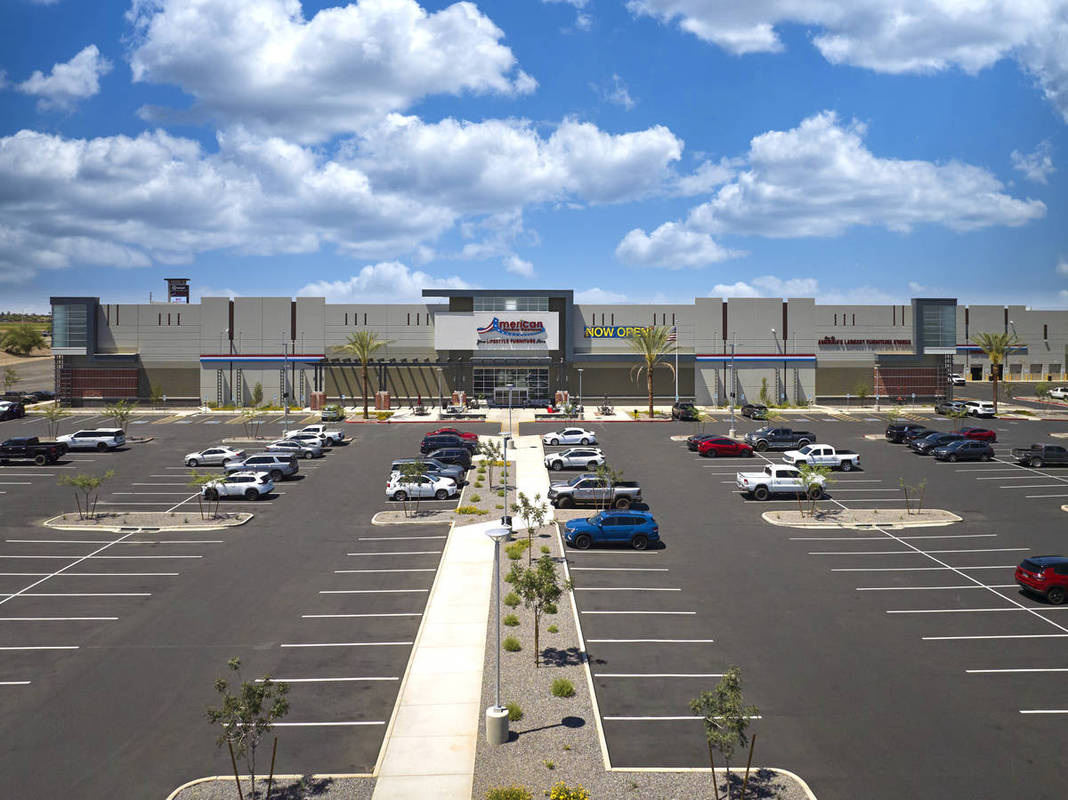

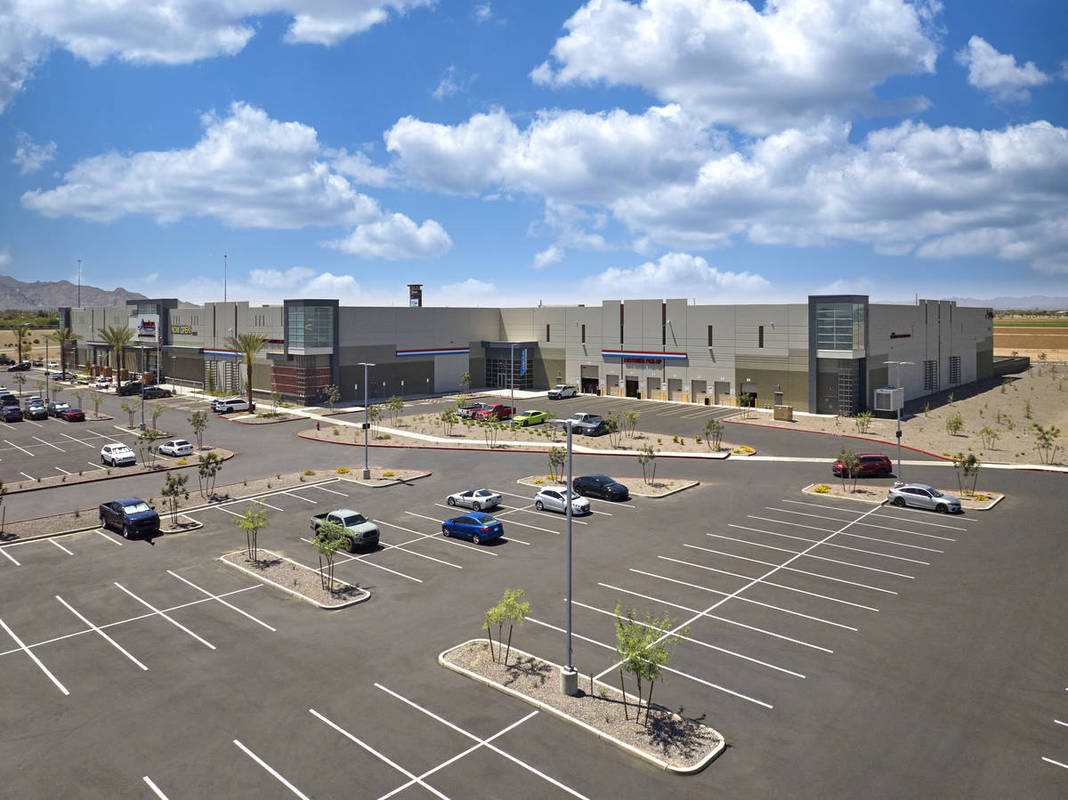

American Furniture Warehouse – Surprise is a 207,675 SF fully air-conditioned tilt-wall building on a 23-acre site. The project consists of a 147,294 SF showroom with private offices and a 55,797 SF warehouse with dock high doors and in-rack sprinklers. It is the 5th American Furniture Warehouse completed by Burton Construction alongside Butler Design Group.
Project Location
Surprise, AZ 85388
United States
Project Images
1
2
3
4
5
6
7
8
Project Team (TCA Members)
- Developer/Owner:
- General Contractor:
- Burton Construction
- Concrete Contractor:
- Architect:
- Engineer:
- Suppliers:
- Photographer(s):
- David Schacher
Project Specifics
- Project Category:
- Retail
- Building Types:
- Warehouse
- Finishes:
- Block
- Concrete (Polished)
- Concrete (Raw/Sealed)
- Exterior insulation and finish system (EIFS)
- Paint (Flat)
- Paint (Textured)
- Features:
- Embedded Items
- Formliner
- Reveals
- Insulation:
- Post Applied (Interior)
- Environmental:
- Number of Floors:
- 1
- Number of Panels:
- 76 panels
- Tilt-Up Wall Area:
- 90,000 sq ft (8,361 sq m)
- Total Floor Area:
- 207,675 sq ft (19,293 sq m)
- Project Footprint:
- 207,675 sq ft (19,293 sq m)
- Tallest Panel:
- 51 ft 2 in (15.60 m)
- Widest Panel:
- 31 ft 5 in (9.58 m)
- Largest Panel:
- 1,300 sq ft (120.8 sq m)
- Heaviest Panel:
- 160,400 lbs (72,756 kg)
- Longest Spandrel:
- 31 ft 11 in (9.73 m)
